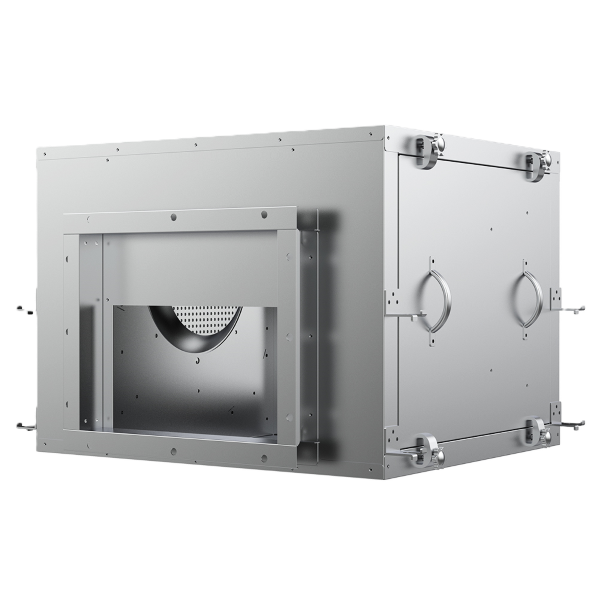

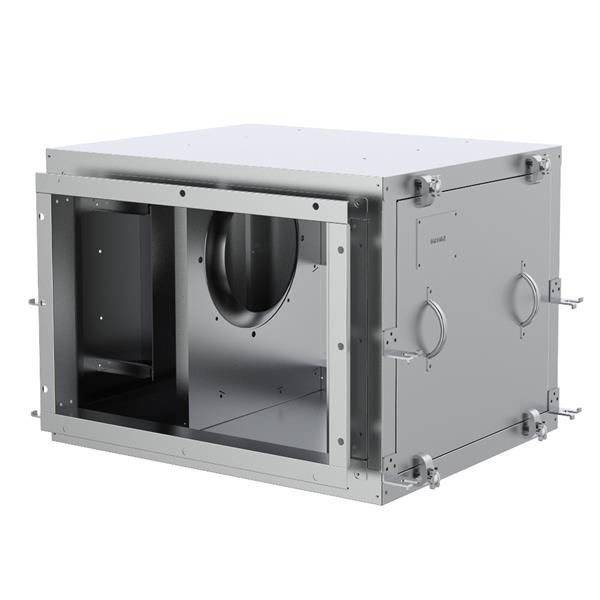

KTJ Cabinet Fan Series

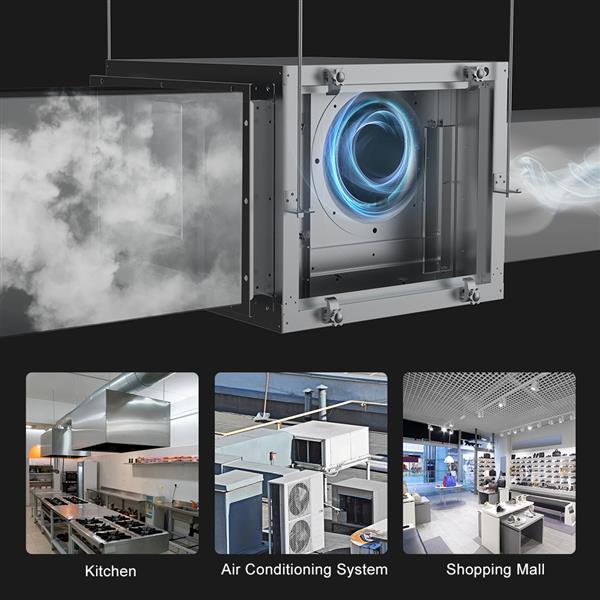

- Designed specifically for high-demand environments such as commercial kitchens, central air conditioning systems, and large shopping malls, providing a one-stop solution for ventilation and purification issues.
- Through multi-layer filtration and centrifugation technology, the removal rate of smoke/particulate matter is high.

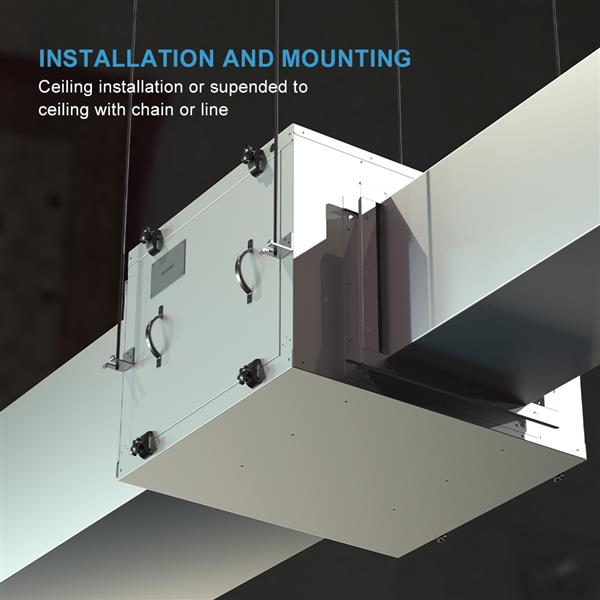

- Flexible installation: supports ceiling fixing or chain hanging, adaptable to different spatial structures.
- Durable design: all-metal body with copper core motor, resistant to corrosion and long service life.

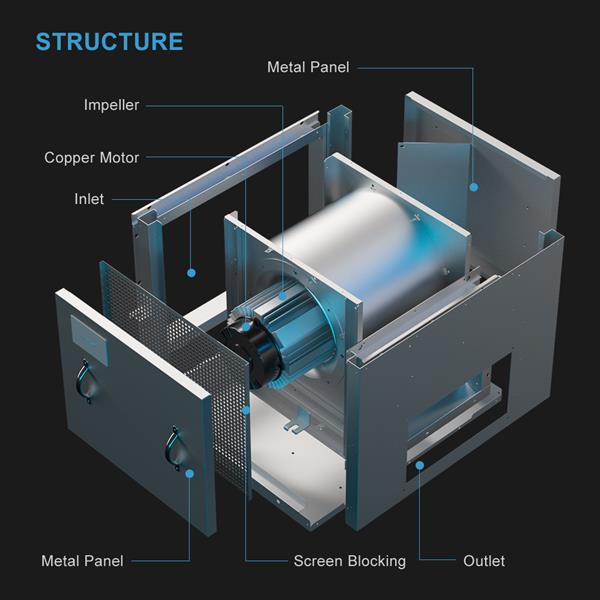

- Modular structure: quick-release design of components such as filters and motors can reduce maintenance costs.

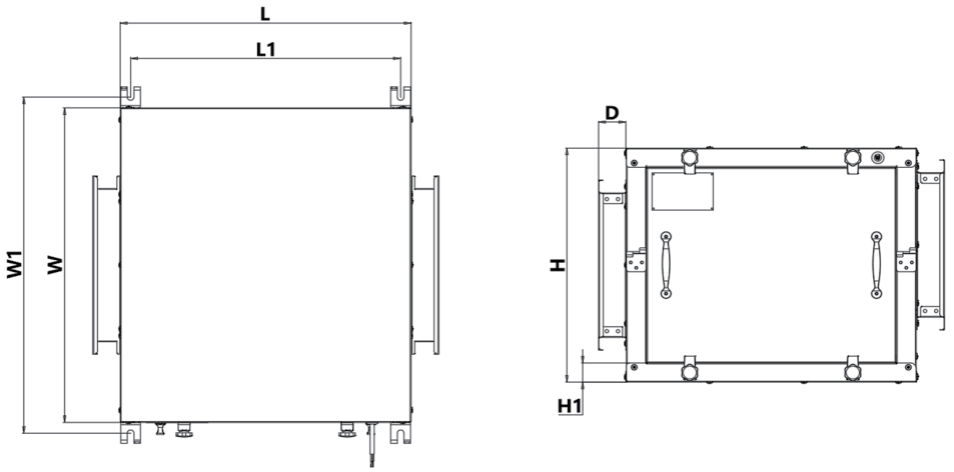

Dimensions (unit:mm):
| Model | L | L1 | W | W1 | H | H1 | D1 | Air Inlet Size (L*W) | Air Outlet Size (L*W) |
|---|---|---|---|---|---|---|---|---|---|
| KTJ23 - 20D | 490 | 452 | 490 | 530 | 372 | 36 | 50 | 270x265 | 350x312 |
| KTJ23 - 26D | 490 | 452 | 490 | 530 | 372 | 36 | 50 | 300x280 | 430x312 |
| KTJ23 - 31D | 524 | 486 | 592 | 632 | 440 | 36 | 50 | 335x320 | 335x320 |
| KTJ23 - 41D | 524 | 486 | 592 | 632 | 440 | 36 | 50 | 335x320 | 550x380 |
| KTJ23 - 20 | 490 | 452 | 490 | 530 | 372 | 36 | 50 | 270x265 | 350x312 |
| KTJ23 - 26 | 490 | 452 | 490 | 530 | 372 | 36 | 50 | 300x280 | 430x312 |
| KTJ23 - 31 | 524 | 486 | 592 | 632 | 440 | 36 | 50 | 335x320 | 335x320 |
| KTJ23 - 41 | 524 | 486 | 592 | 632 | 440 | 36 | 50 | 335x320 | 550x380 |
| KTJ28 - 51 | 640 | 568 | 700 | 743 | 535 | 36 | 50 | 410x358 | 640x465 |
| KTJ28 - 61 | 700 | 628 | 740 | 783 | 600 | 35 | 50 | 400x460 | 550x460 |
| KTJ31 - 71 | 700 | 628 | 740 | 783 | 600 | 35 | 50 | 400x460 | 550x460 |
| KTJ31 - 81 | 700 | 628 | 780 | 823 | 600 | 35 | 50 | 400x460 | 745x535 |
| KTJ35 - 100 | 810 | 738 | 780 | 823 | 665 | 35 | 50 | 440x460 | 745x535 |
| KTJ35 - 120 | 810 | 738 | 780 | 823 | 665 | 35 | 50 | 440x460 | 745x535 |
| KTJ40 - 150 | 848 | 753 | 947 | 1067 | 802 | 35 | 50 | 455x460 | 835x600 |
| KTJ40 - 200 | 848 | 753 | 947 | 1067 | 802 | 35 | 50 | 455x460 | 835x600 |

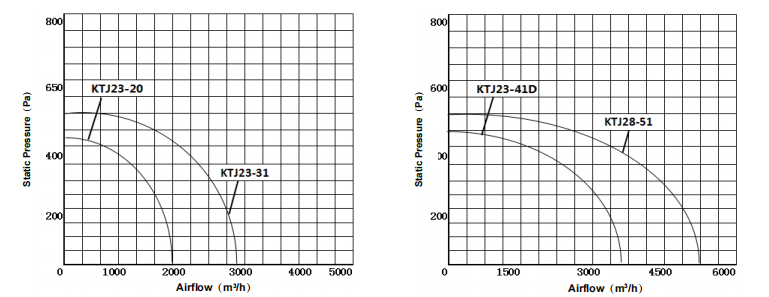

performance:
| Model | Voltage (V - Hz) | Speed (RPM) | Power (W) | Airflow (m³/h) | Static Pressure (Pa) | Noise (dB) | N.W (Kg) |
|---|---|---|---|---|---|---|---|
| KTJ23 - 20D | 220/50 | 1350 | 250 | 2000 | 400 | 55 | 26 |
| KTJ23 - 26D | 220/50 | 1350 | 370 | 2600 | 420 | 56 | 27 |
| KTJ23 - 31D | 220/50 | 1350 | 550 | 3100 | 440 | 65 | 33 |
| KTJ23 - 41D | 220/50 | 1350 | 750 | 4100 | 460 | 65 | 34 |
| KTJ23 - 20 | 380/50 | 1350 | 250 | 2000 | 400 | 55 | 25.5 |
| KTJ23 - 26 | 380/50 | 1350 | 370 | 2600 | 420 | 56 | 26 |
| KTJ23 - 31 | 380/50 | 1350 | 550 | 3100 | 440 | 61 | 33 |
| KTJ23 - 41 | 380/50 | 1350 | 750 | 4100 | 460 | 65 | 34 |
| KTJ28 - 51 | 380/50 | 940 | 750 | 5100 | 400 | 67 | 58.5 |
| KTJ28 - 61 | 380/50 | 940 | 1100 | 6100 | 420 | 68 | 66 |
| KTJ31 - 71 | 380/50 | 940 | 1500 | 7100 | 440 | 69 | 70 |
| KTJ31 - 81 | 380/50 | 940 | 1500 | 8100 | 461 | 70 | 72 |
| KTJ35 - 100 | 380/50 | 940 | 2200 | 10000 | 551 | 71 | 84.5 |
| KTJ35 - 120 | 380/50 | 940 | 2500 | 12000 | 591 | 72 | 86.5 |
| KTJ40 - 150 | 380/50 | 940 | 2500 | 15000 | 700 | 75 | 111 |
| KTJ40 - 200 | 380/50 | 940 | 3000 | 20000 | 257 | 77 | 128 |
