High Pressure Air Cabinet Fan

The High Pressure Air Cabinet Fan is the quiet workhorse behind many industrial systems — keeping control cabinets, distribution boxes, and ventilation setups running smoothly by moving air exactly where it’s needed.

It delivers steady static pressure, which means it performs reliably even in systems with long ducts or confined spaces where air doesn’t flow easily. When resistance goes up, this fan keeps pushing — without a fuss.

Designed with precision‑balanced blades and a high‑quality motor, it maintains strong airflow while running impressively quiet. Beneath the clean, practical design is a durable metal housing that holds up against vibration, heat, and time.

Each model is available in multiple sizes and connection types, making it simple to integrate into existing systems or new projects. From large power equipment to compact sealed units, the flexibility and reliability of this fan make it a trusted solution across industries.

It’s tough, reliable, and designed to stay invisible — working efficiently in the background while everything else keeps running right.

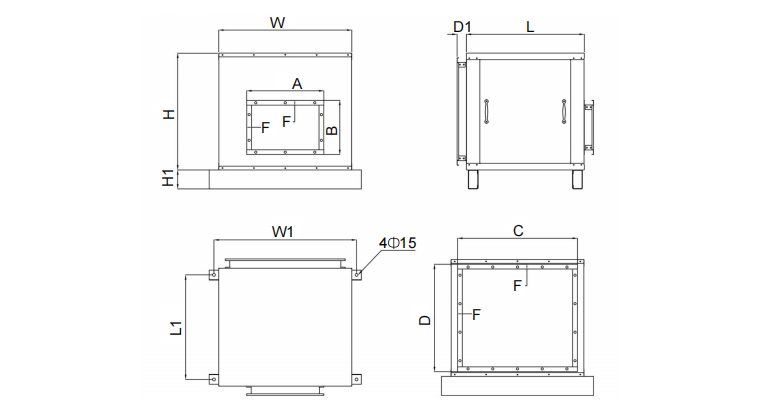

Dimensions (unit: mm):

Model	L	L1	W	W1	H	H1	D1	F1	Air Outlet Size (A×B)	Air Inlet Size (C×D)
DT28-6000	620	520	700	750	615	100	50	25	405×285	630×565
DT30-8000	650	550	750	800	650	100	50	25	430×300	680×600
DT30-10000	650	550	750	800	650	100	50	25	430×300	680×600
DT30-12000	725	625	800	850	725	100	50	25	405×330	730×675

Form

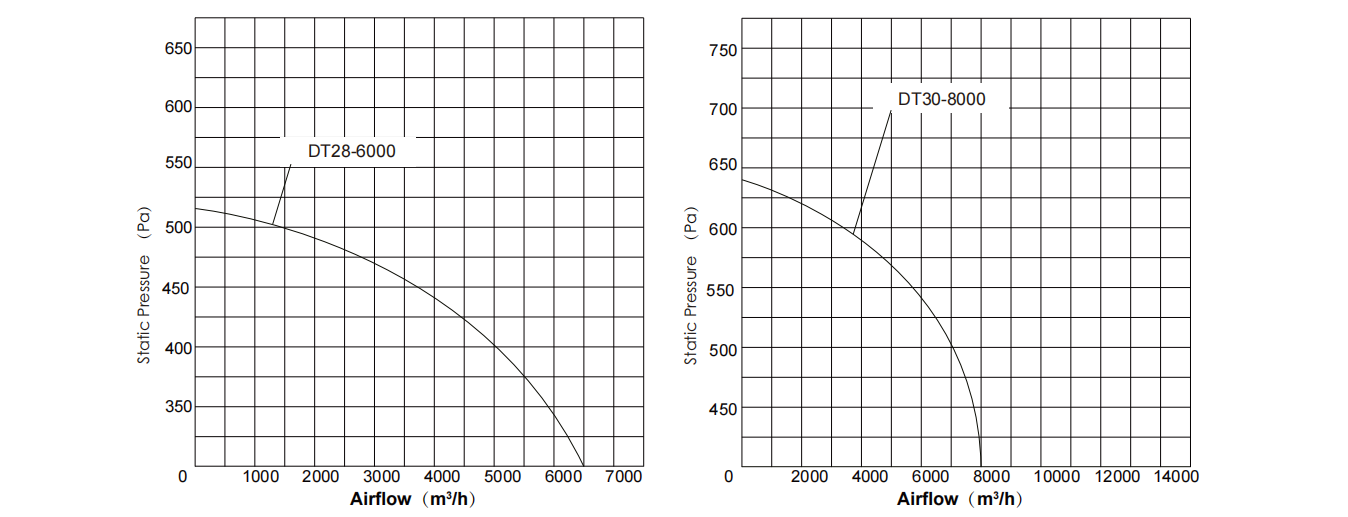

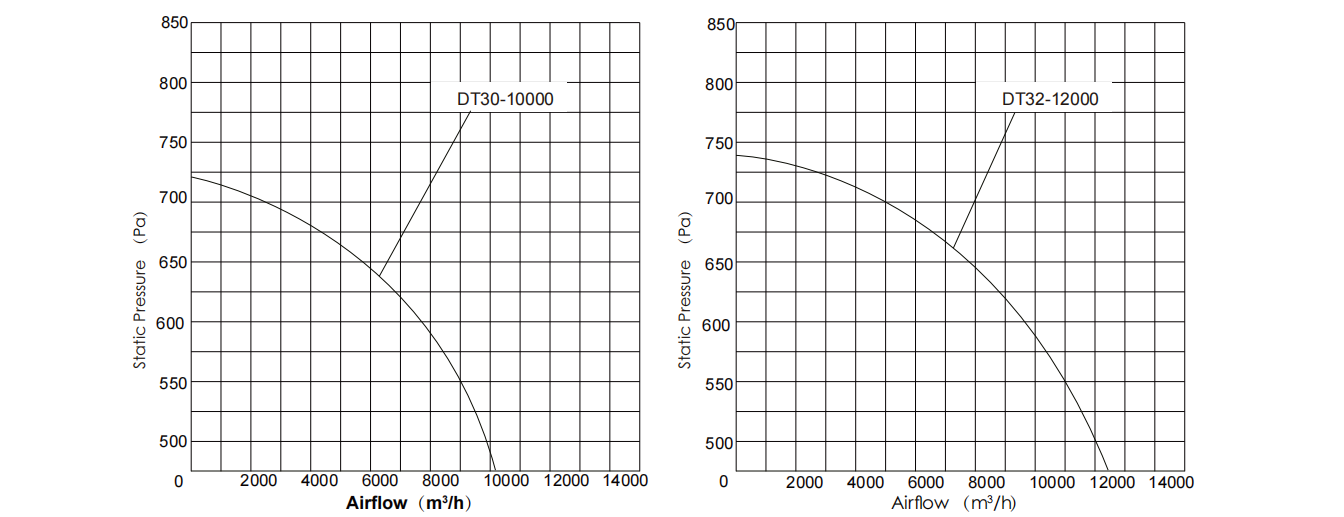

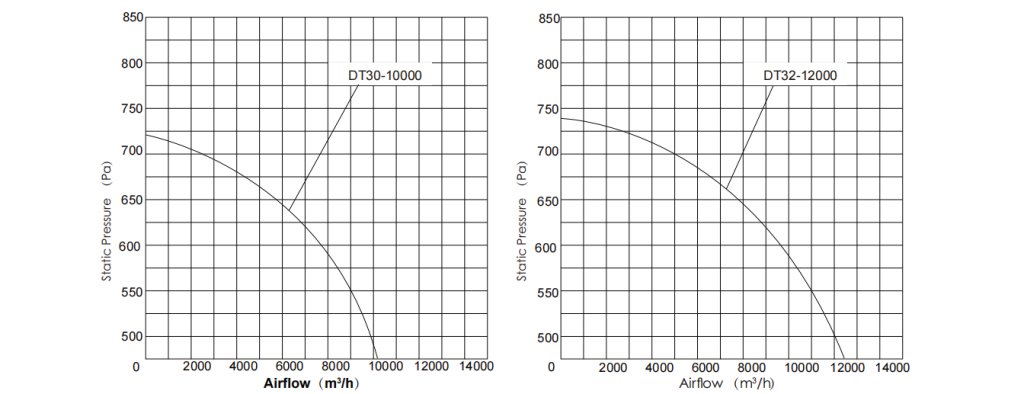

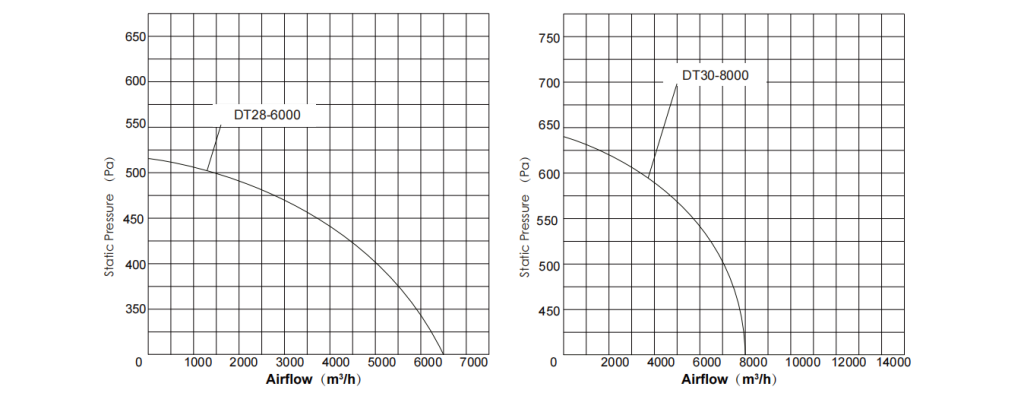

performance:

Model	Voltage (V~Hz)	Speed (RPM)	Power (W)	Airflow (m³/h)	Static Pressure (Pa)	Noise (dB)	N.W (Kg)
DT28-6000	380~50	1400–1450	1500	6500–4800	710–520	64	60
DT30-8000	380~50	1400–1500	2200	8500–6500	740–640	67	68
DT30-10000	380~50	1400–1500	3000	10500–8500	800–720	70	72
DT30-12000	380~50	1400–1450	4000	12500–9000	850–740	73	90
