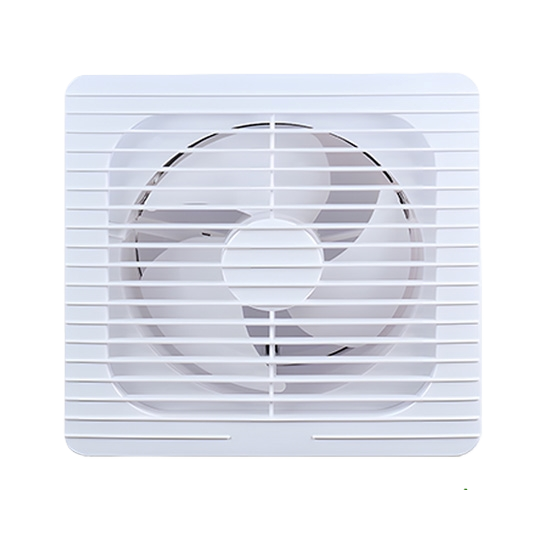

EC Bathroom Fan
The EC Bathroom Fan is one of those quiet upgrades that immediately improves how a space feels. You switch it on, and within seconds, the air feels lighter — clean, dry, and fresh — without a hint of hum or rattle in the background.
At its heart is a high‑performance EC motor, engineered to move plenty of air while using very little power. It’s the kind of smart efficiency you’ll notice on your energy bill too — strong ventilation that doesn’t cost a fortune to run.
The fan is built for more than comfort; it’s built to last. The housing is solid and corrosion‑resistant, designed to handle humid bathrooms, kitchen spaces, or even small commercial environments where reliability isn’t optional.
Noise has been tamed down to a gentle whisper. You can have it running in an ensuite bedroom or an office without even realizing it’s there — just a steady, subtle flow of air keeping things fresh.
And installation? Simple. The mounting system is intuitive, and all instructions are clear enough for both DIY fans and professional installers. Once it’s up, it quietly does its job — no fuss, no constant adjusting, just clean air when you need it.
The EC Bathroom Fan isn’t flashy, but it’s the kind of hardware that makes every day a bit more comfortable — efficient, calm, and quietly dependable.
Dimensions (unit: mm):

| Model | Panel | Thickness | Diameter |
|---|---|---|---|
| APC10 - EC | 142*142 | 75 | 98 |
| APC15 - EC | 200*200 | 75 | 150 |
| APC20 - EC | 250*250 | 100 | 180 |
performance:
| Model | Voltage (V/Hz) | Power (W) | Airflow (m鲁/h) | Speed (r/min) | Noise (dB) | Size (mm) | Hole Size (mm) |
|---|---|---|---|---|---|---|---|
| APC10 - EC | 220V - 50Hz | 4 | 192 | 1800 | 38 | 1427798 | 102 - 103 |
| APC15 - EC | 220V - 50Hz | 5 | 192 | 1800 | 40 | 20087150 | 152 - 158 |
| APC20 - EC | 220V - 50Hz | 6 | 258 | 1800 | 42 | 250100180 | 198 - 203 |
- Global shipping: Free Shipping, Delivered within 7–15 days
- International Returns: Return by mail within 30 days
