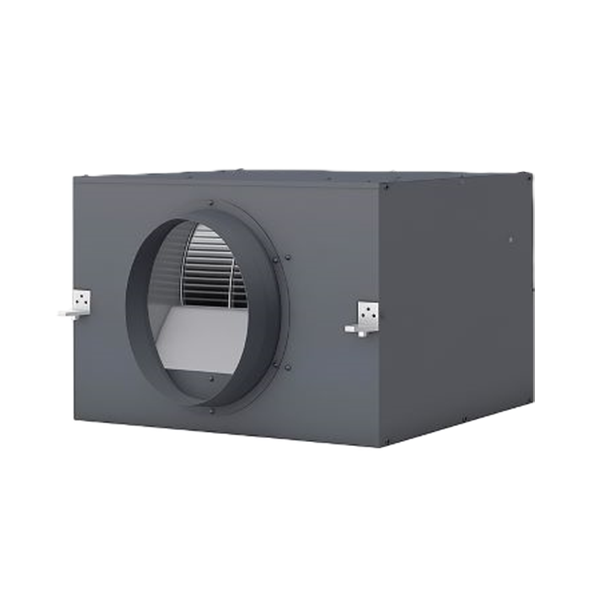

Silent In-Line Series

Designed with care, it achieves excellent airflow with minimal noise output, making it ideal for residential, commercial, and industrial ventilation systems. This series features a durable steel casing and advanced aerodynamic structure, ensuring high efficiency, stable performance, and a long service life.
Robust Construction:Heavy-duty galvanized steel housing with anti-corrosion coating for enhanced durability and long-term use.
Multiple Sizes:Available in a wide range of dimensions to fit different duct systems and performance needs.
Easy Installation:Compact cubic design with standardized mounting brackets for quick and hassle-free setup.

Model	L	L1	W	W1	H	H1	C
DPT10-12B	462	388	240	180	200	45	Φ96
DPT10-24B	462	388	240	180	200	45	Φ96
DPT15-32B	488	388	240	186	238	40	Φ148
DPT15-42B	540	440	270	210	380	51	Φ148
DPT20-54B	562	470	340	270	382	52	Φ198
DPT20-54C	632	540	370	270	320	71	Φ198
DPT20-65B	662	570	401	300	365	94	Φ198
DPT25-76B	662	570	401	300	365	94	Φ250
DPT25-76C	732	640	401	340	380	61	Φ250
DPT25-86B	732	640	401	340	380	61	Φ250

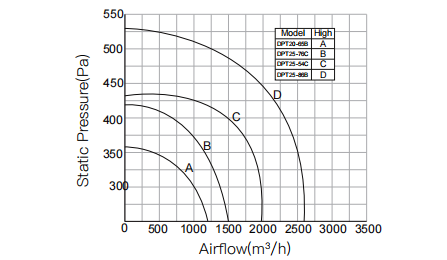

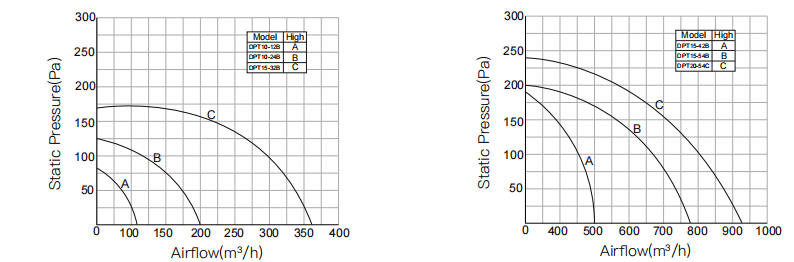

Model	Voltage	Speed	Power	Airflow	Static Pressure	Noise	Duct Diameter
Model	(V/Hz)	Speed	(W)	(m³/h)	(Pa)	(dB)	Φ(mm)
DPT10-12B	220-50	/	23	100	80	20	100
DPT10-24B	220-50	H/L	30/23	200/150	125/100	23	100
DPT15-32B	220-50	H/L	42/33	360/250	160/120	27	150
DPT15-42B	220-50	H/L	103/88	500/400	190/165	29	150
DPT20-54B	220-50	H/L	114/101	770/600	200/195	35	200
DPT20-54C	220-50	H/L	174/146	920/800	240/220	37	200
DPT20-65B	220-50	H/L	253/210	1200/1000	360/320	41	200
DPT25-76B	220-50	H/L	535/480	1700/1500	420/410	43	250
DPT25-76C	220-50	H/L	565/500	1900/1800	430/425	46	250
DPT25-86B	220-50	H/L	800/728	2600/2400	530/510	46	250
