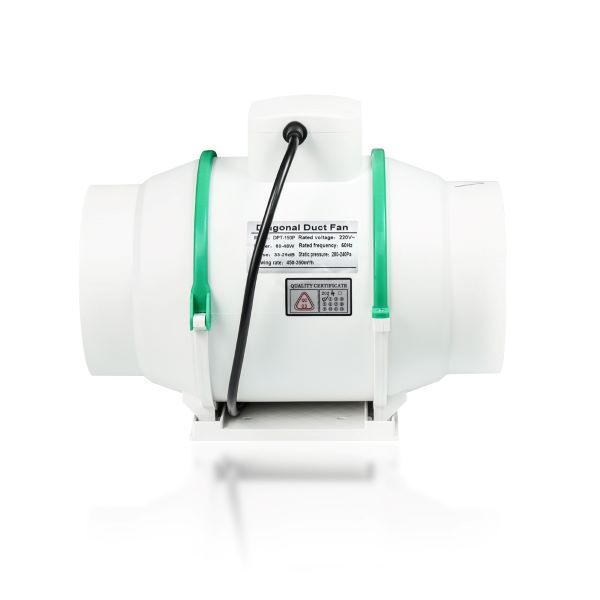

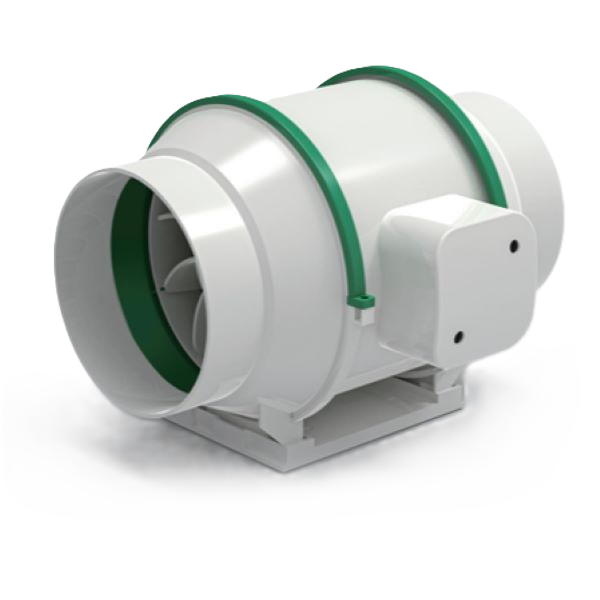

Mixed Flow Inline Fan – Kcp Series

The KCP Series Mixed Flow Inline Fan combines the advantages of axial and centrifugal designs, delivering powerful airflow with low noise. Compact and durable, it is ideal for a wide range of ventilation applications including kitchen exhaust, greenhouse air circulation, and duct ventilation systems.
High Efficiency & Energy Saving – Mixed flow technology increases air pressure and volume while reducing energy consumption.
Excellent Cost Performance – Multi-purpose design, long service life, and low maintenance cost.

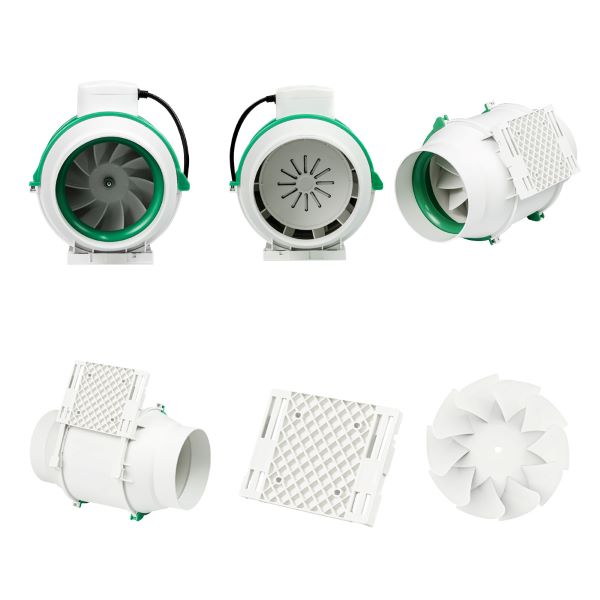

Quiet Operation – Aerodynamically optimized impeller and airflow path for minimal noise.

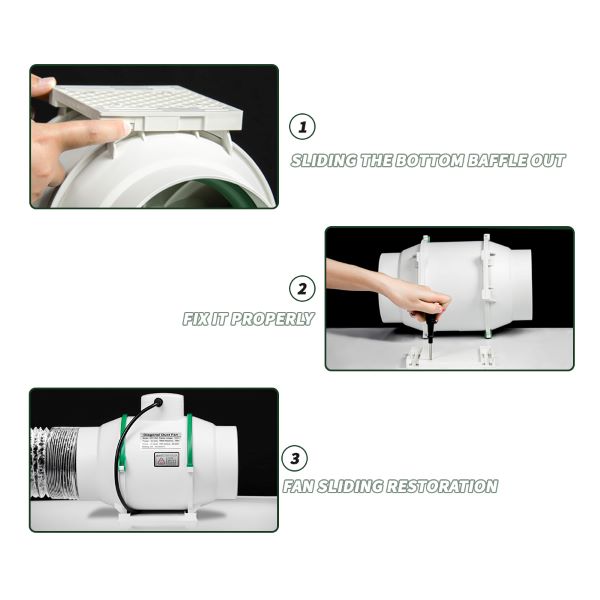

Easy Installation & Maintenance – Slide-in mounting bracket allows quick removal for cleaning and servicing.

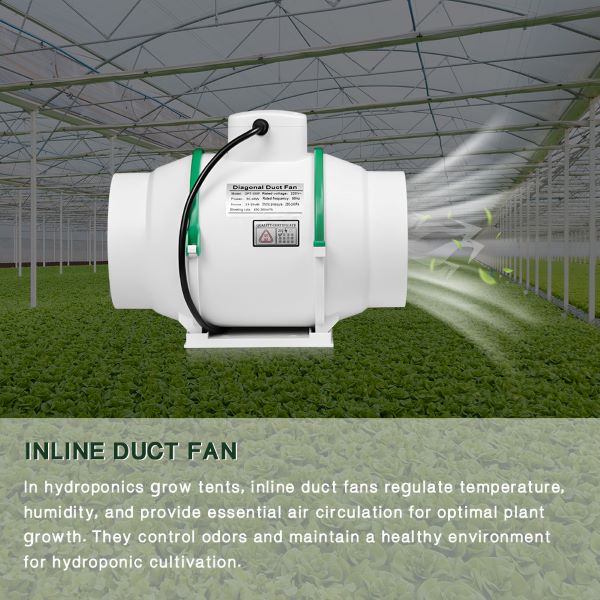

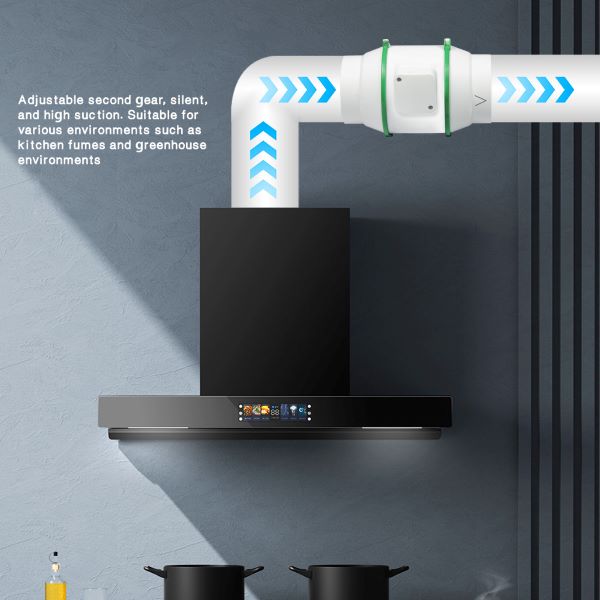

Wide Application Range – Suitable for various environments such as kitchen exhaust ventilation, commercial and industrial duct systems, greenhouse and hydroponics air circulation, as well as odor control and air purification systems.

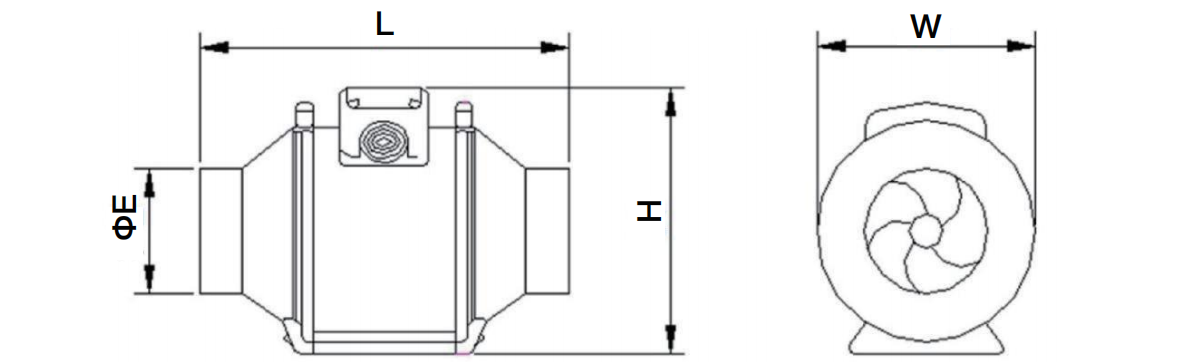

Model	L	L1	L2	W
KC - 100P	257	180	215	99
KC - 125P	257	180	215	122
KC - 150P	302	210	245	148
KC - 200P	302	230	270	198
KC - 250P	390	280	310	248
KC - 315P	450	320	413	313

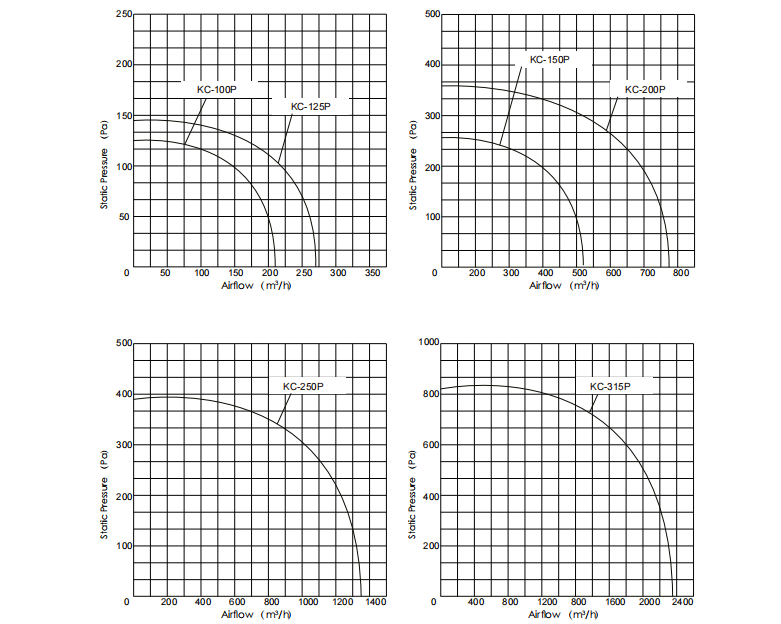

Model	Voltage	Speed	Power	Airflow	Static Pressure	Noise	Size	N.W
Model	(V-Hz)	Speed	(W)	(m³/h)	(Pa)	(dB)	Φ(mm)	(Kg)
KC-100P	220-50	H/L	40/30	204/160	132/106	31/26	Φ100	1.55
KC-125P	220-50	H/L	45/38	260/180	150/120	32/28	Φ125	1.65
KC-150P	220-50	H/L	60/48	450/360	280/240	33/29	Φ150	2.5
KC-200P	220-50	H/L	145/125	840/690	350/270	63/55	Φ200	3.1
KC-250P	220-50	/	230	1400	489	66	Φ250	7.5
KC-315P	220-50	/	360	2200	690	69	Φ315	10.4
