In-Line Series 2 Ways

  1. High Efficiency:  Equipped with a high-efficiency motor and optimized aerodynamic design, the unit delivers powerful airflow with reduced energy consumption. The centrifugal impeller ensures stable performance, low operating costs, and extended service life.
  2. Durable Construction:  Full metal housing made from premium galvanized steel provides superior strength and corrosion resistance. The integrated casing design resists deformation, ensuring long-term reliability even under continuous operation.
  3.  Flexible Configuration:  Available in multiple models and sizes, the series can be adapted to a variety of ducting systems. It can work individually or in combination with other fans to meet different ventilation requirements.
  4. Long-Distance Air Delivery:  Designed with strong static pressure capability, the fan can effectively deliver air over long distances, making it ideal for complex ductwork layouts and large-scale ventilation projects.

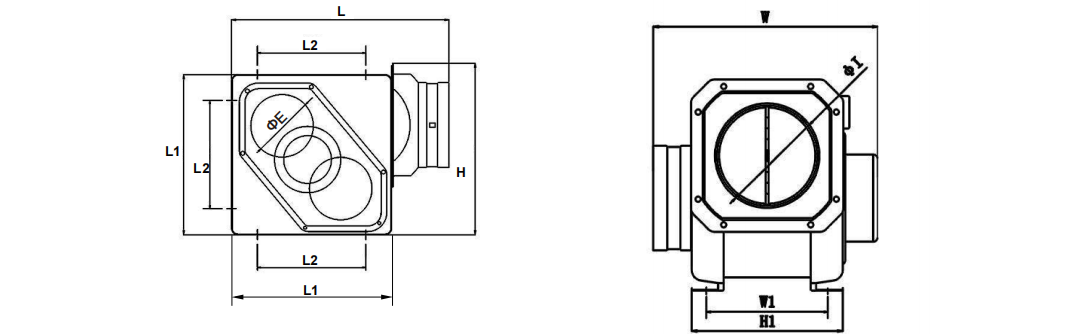

Dimensions (unit: mm):
ModelLL1L2ΦEWW1HH1ΦI
DPT10-11(1T2)5804033007540043719911898
DPT10-11F(1T2)5514033007540043719911898
DPT10-34(1T2)551403300100400437250157150
Form

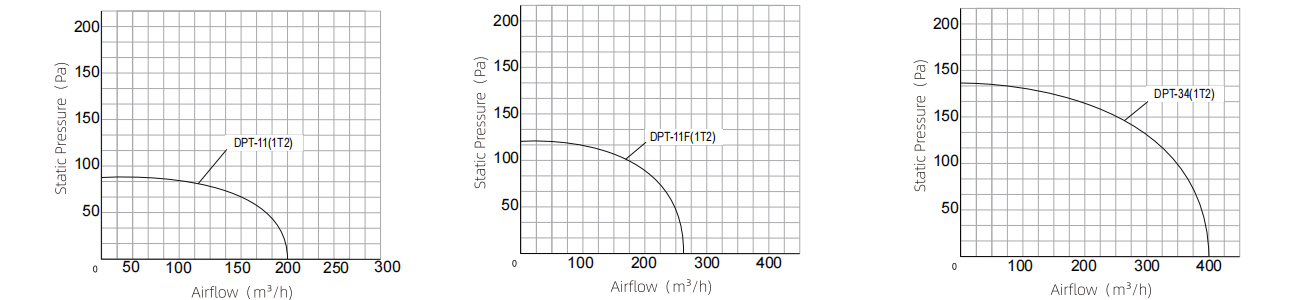

performance:
ModelVoltageSpeedPowerAirflowStatic PressureNoiseDuct Diameter
(V/Hz)(W)(m³/h)(Pa)(dB)Φ(mm)
DPT10-11(1T2)220-50H231607538100
DPT10-11F(1T2)220-50H3020025043100
DPT10-34(1T2)220-50H4240015552150
