In-Line Series

  1. High Efficiency:  Equipped with a high-efficiency motor and optimized aerodynamic design, the unit delivers powerful airflow with reduced energy consumption. The centrifugal impeller ensures stable performance, low operating costs, and extended service life.
  2. Durable Construction:  Full metal housing made from premium galvanized steel provides superior strength and corrosion resistance. The integrated casing design resists deformation, ensuring long-term reliability even under continuous operation.
  3.  Flexible Configuration:  Available in multiple models and sizes, the series can be adapted to a variety of ducting systems. It can work individually or in combination with other fans to meet different ventilation requirements.
  4. Long-Distance Air Delivery:  Designed with strong static pressure capability, the fan can effectively deliver air over long distances, making it ideal for complex ductwork layouts and large-scale ventilation projects.

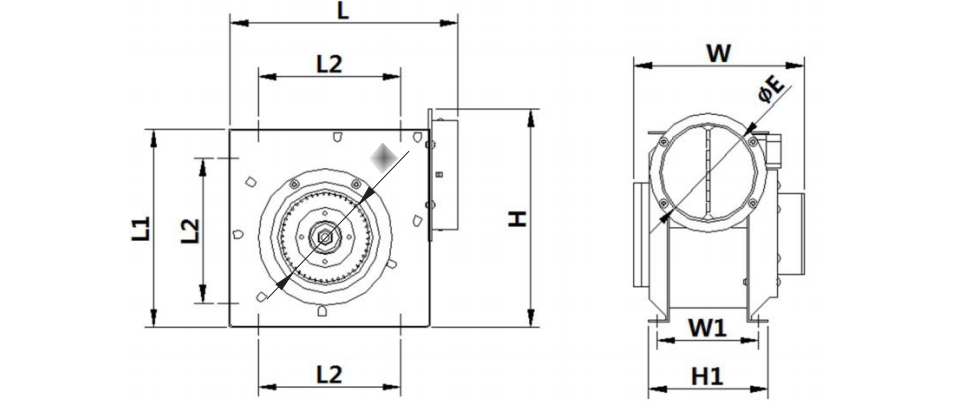

Dimensions (unit: mm):
ModelLL1L2WW1HH1H1I
DPT10-11215181120175103199118Φ98Φ98
DPT10-11F215181120175103199118Φ98Φ98
DPT15-34270230120207137250157Φ150Φ150
DPT15-34F292252142220143285159Φ150Φ150
DPT20-45F343297170323194342218Φ200Φ200
DPT20-65F343297170323194342218Φ200Φ200
DPT20-75377331198351229384255Φ200Φ200
Form

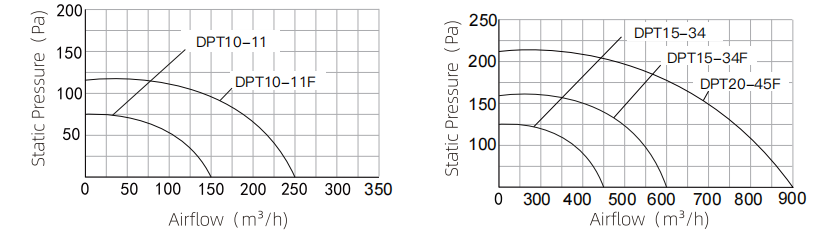

performance:
ModelVoltagePowerAirflowStatic PressureNoiseDuct Diameter
(V/Hz)(W)(m³/h)(Pa)(dB)Φ(mm)
DPT10-11220-50231506540100
DPT10-11F220-503025010645100
DPT15-34220-504245012742150
DPT15-34F220-508560017046150
DPT20-45F220-5020090020748200
DPT20-65F220-50300150022052200
DPT20-75220-50330210038062200
