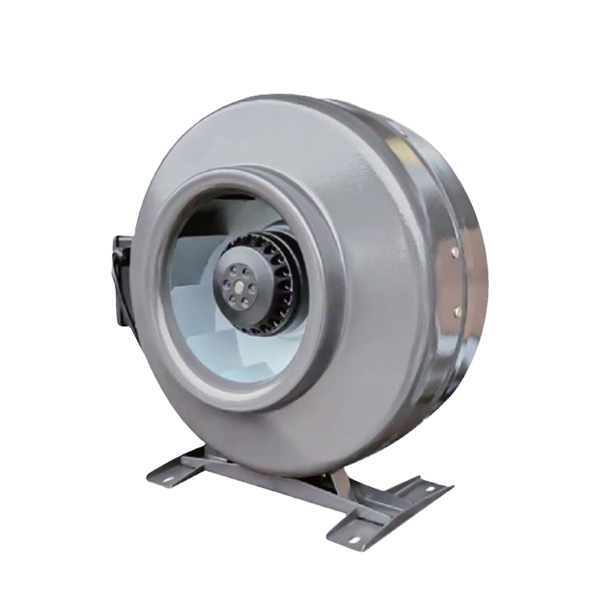

Centrifugal Inline Series
- With a centrifugal impeller design, it provides outstanding air pressure and airflow for long duct systems. Its compact, robust structure and energy-efficient operation make it highly suitable for commercial and industrial ventilation applications.
- High Efficiency & Low Energy Consumption – Optimized centrifugal impeller ensures strong airflow with reduced power usage.
- Durable Construction – Galvanized steel housing with anti-corrosion coating for extended service life.
- Low noise performance – The balanced impeller reduces vibration and noise, resulting in low noise levels. Additionally, the motor is equipped with overheat protection.
- Wide Range of Models – Multiple sizes and specifications to meet diverse airflow and pressure requirements.

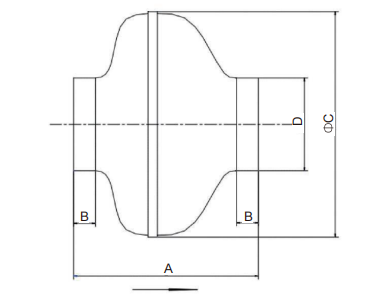

Dimensions (unit: mm):
| Model | A | B | C | ΦD |
|---|---|---|---|---|
| DJT10-25B | 195 | 30 | 237 | 98 |
| DJT12-35B | 195 | 30 | 237 | 123 |
| DJT15-45B | 238 | 30 | 326 | 148 |
| DJT16-45B | 240 | 30 | 326 | 158 |
| DJT20-46B | 224 | 30 | 326 | 198 |
| DJT25-66B | 224 | 30 | 326 | 248 |
| DJT31-66B | 240 | 30 | 396 | 313 |

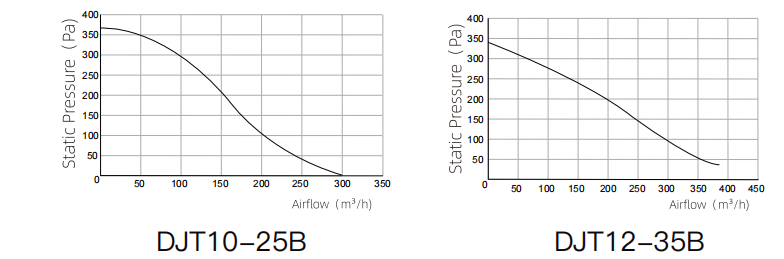

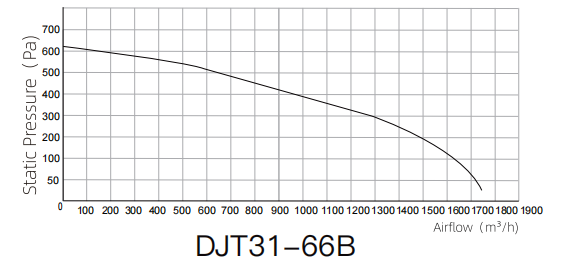

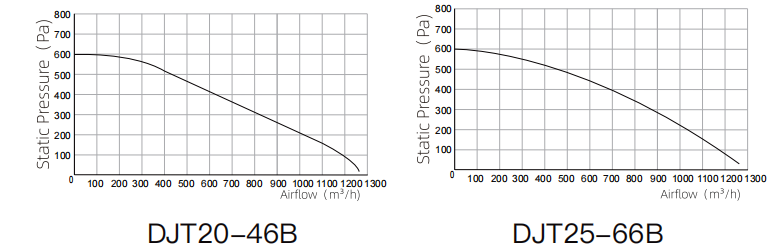

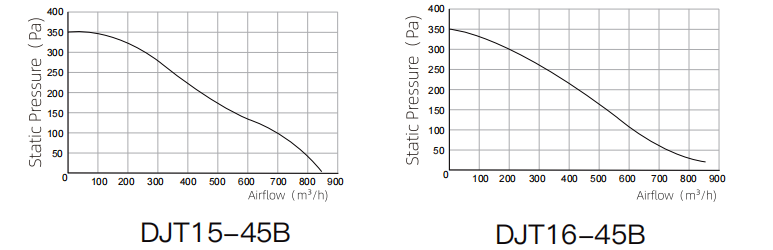

performance:
| Model | Voltage | Power | Airflow | Static Pressure | Noise | Duct Diameter | Applicable Area | Packing Size | N.W |
|---|---|---|---|---|---|---|---|---|---|
| (V/Hz) | (W) | (m³/h) | (Pa) | (dB) | (mm) | (m³) | (cm) | (Kg) | |
| DJT10-25B | 220-240 | 61 | 300 | 377 | 62 | 100 | 12月16日 | 31x31x25 | 3.5 |
| DJT12-35B | 220-240 | 62 | 385 | 339 | 61 | 125 | 16-21 | 31x31x25 | 3.5 |
| DJT15-45B | 220-240 | 88 | 700 | 399 | 66 | 150 | 29-38 | 40x40x29 | 5 |
| DJT16-45B | 220-240 | 91 | 760 | 352 | 67 | 160 | 31-42 | 40x40x29 | 5 |
| DJT20-46B | 220-240 | 168 | 1165 | 594 | 70 | 200 | 48-64 | 40x40x29 | 5.8 |
| DJT25-66B | 220-240 | 185 | 1255 | 596 | 70 | 250 | 52-69 | 40x40x29 | 5.9 |
| DJT31-66B | 220-240 | 223 | 1740 | 720 | 76 | 315 | 72-96 | 46x43.5x32 | 7 |
