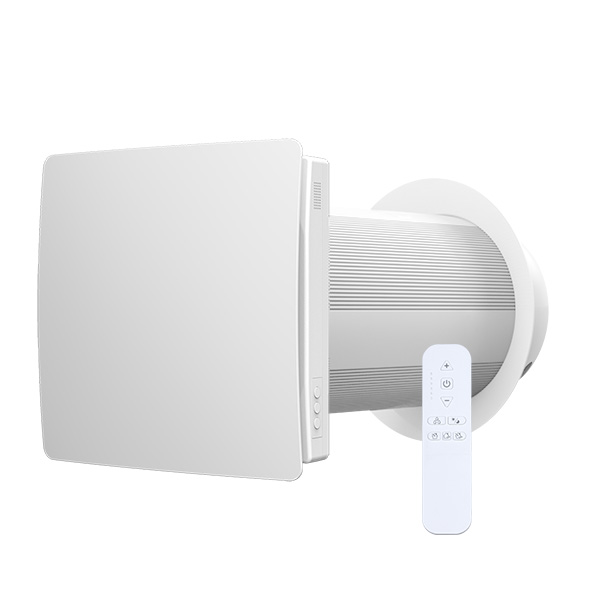

Wall Mounted HEPA Fan VT501-F
- Dual filtered air mode, indoor be filled with fresh air for 24 hours.
- Square fan body, beautiful hang installation,suitable for various kinds of decorating styles.
- Purify indoor air, continuous filter PM2.5,formaldehyde etc.
- New design for 360° angle intaking air.

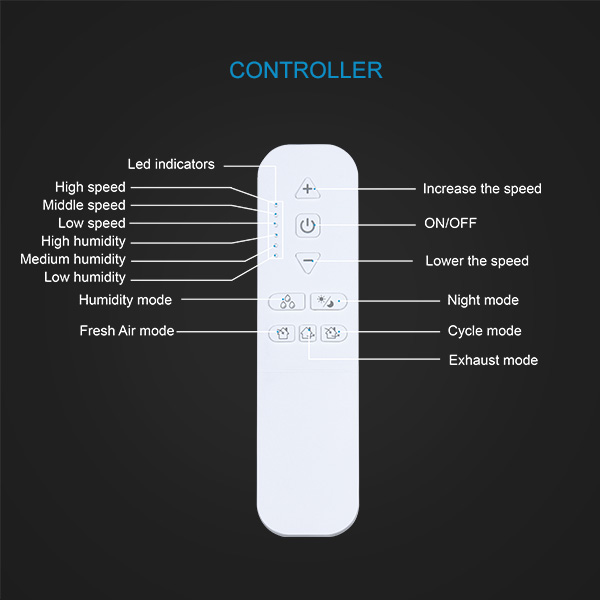

- Infrared sensor control, easy operation.
- Humidity mode— the fan is controlled by humidity sensor automatically.

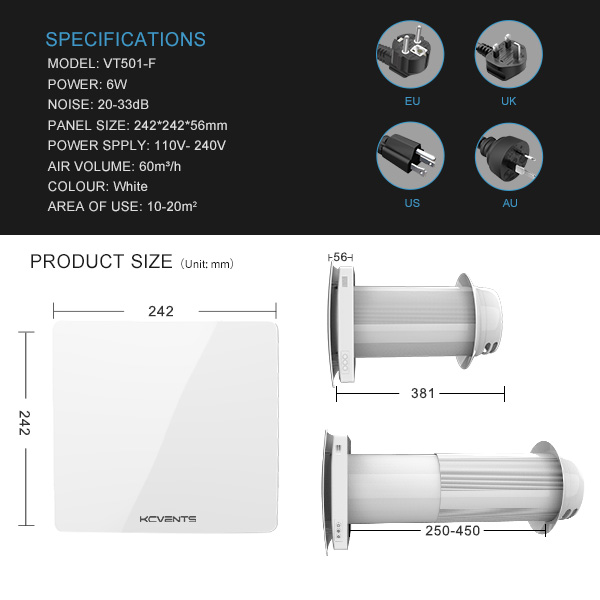

Dimensions (unit: mm):
| Speed | Speed | Ⅰ | Ⅱ | Ⅲ |
|---|---|---|---|---|
| Voltage | 12VDC Or 100 - 240V 50 - 60Hz | |||
| Ventilator Total Power (W) | 2.5 | 3 | 4.5 | 8.5 |
| Ventilator Current(A) | 0.025 | 0.03 | 0.045 | 0.07 |
| Airflow (m³/h) | 20 | 48 | 54 | 60 |
| Speed (RPM) | 630 | 1100 | 1600 | 2200 |
| Transported Air Temperature | -20°C(-4°F) to +50°C(122°F) | |||
| Heat Exchange Efficiency | up to 90% | |||
| Heat Exchanger core | Ceramic | |||
performance:
| Parameter | Value |
|---|---|
| Diameter Unit | 160 mm |
| Exterior Tube | 163 mm |
| Diameter/Wall Thickness | Standard: 250 mm - 500 mm |
| Installation Tube (can be cut) | 250 mm to 500 mm |
| Inside Cover | 242 mm × 242 mm |
