Wall Mounted Bathroom Exhaust Fan
- Top Class Quality
- 99.99% Pure Copper Copper
- Built in thermo cutt off Protect the Motor
- Improved high performance condenser motor with long life ball bearing
- Energy saving-reducing power consumption
- Built-in Ring for Glass and Automatic Shutter
- Made of high quality ABS material
EXHAUST FAN FUNCTION DESCRIPTION:

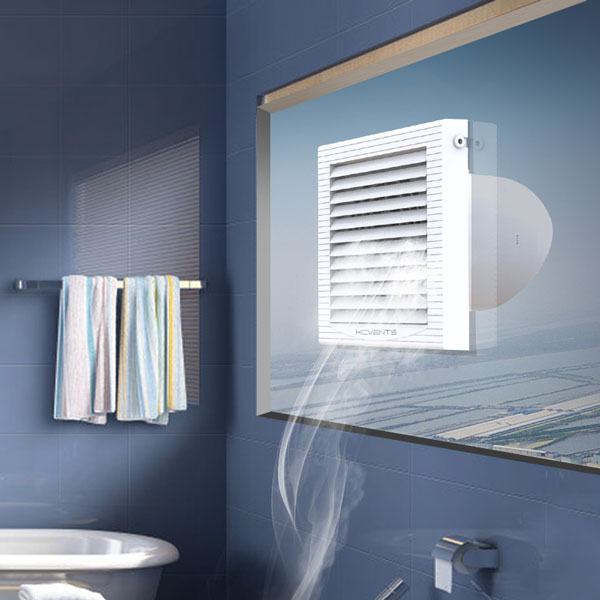

Window Mounted Auto Shutter Exhaust Fan,whisk away steam and odours to keep your rooms feeling fresh.Ideal for large bathrooms,kitchens and laundries with a strong air extraction.Helps prevent build up of mould,mildew and fogging mirrors with greater resistance to high temperatures and quieter operation.

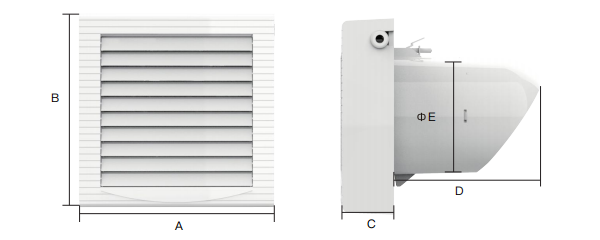

Dimensions (unit: mm):
| Model | A | B | C | D | ΦD |
|---|---|---|---|---|---|
| KC-100D | 150 | 150 | 35 | 130 | 105 |
| KC-150D | 210 | 210 | 40 | 140 | 155 |
| KC-200D | 250 | 250 | 35 | 198 | 180 |
performance:
| Model | Size | Voltage | Power (W) | Airflow (m³/h) | Speed (RPM) | Noise (dB) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| KC-100D | 4 inch (100mm) | 220V-50/60Hz | 15 | 98 | 2100 | 38 | 0.7 |
| KC-150D | 6 inch (150mm) | 220V-50/60Hz | 25 | 210 | 1650 | 40 | 1 |
| KC-200D | 8 inch (200mm) | 220V-50/60Hz | 20 | 260 | 1250 | 37 | 1.5 |
