Single Room HRV VT501-Wifi

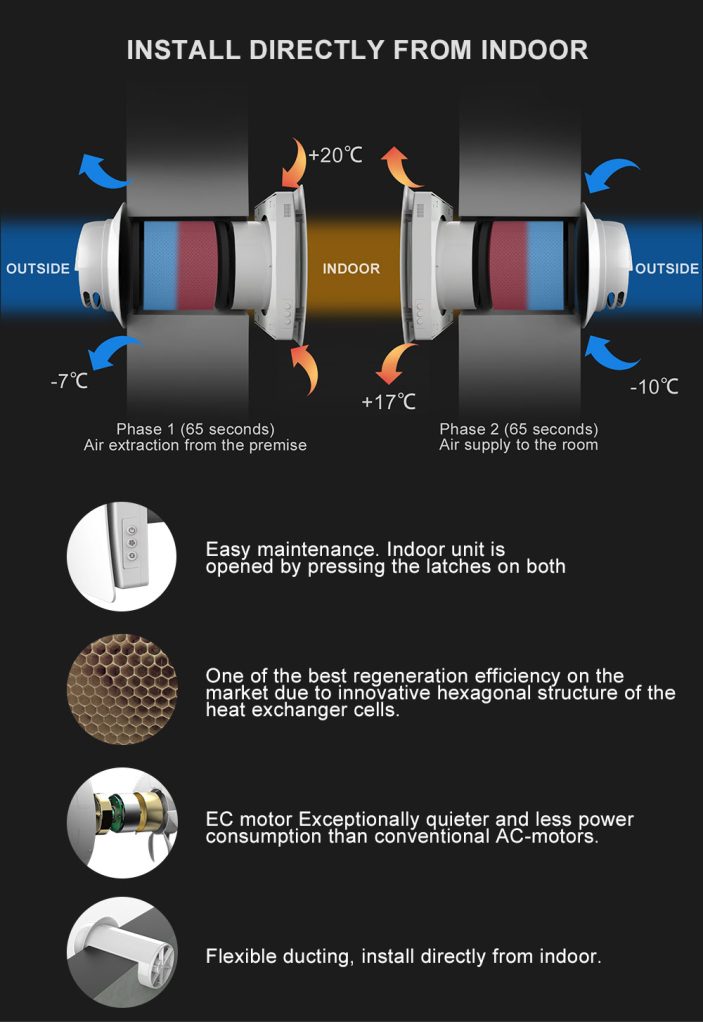

Energy-efficient, the VT501 is equipped with a ceramic heat exchanger core that recovers up to 90% of the heat from exhaust air, reducing energy consumption.

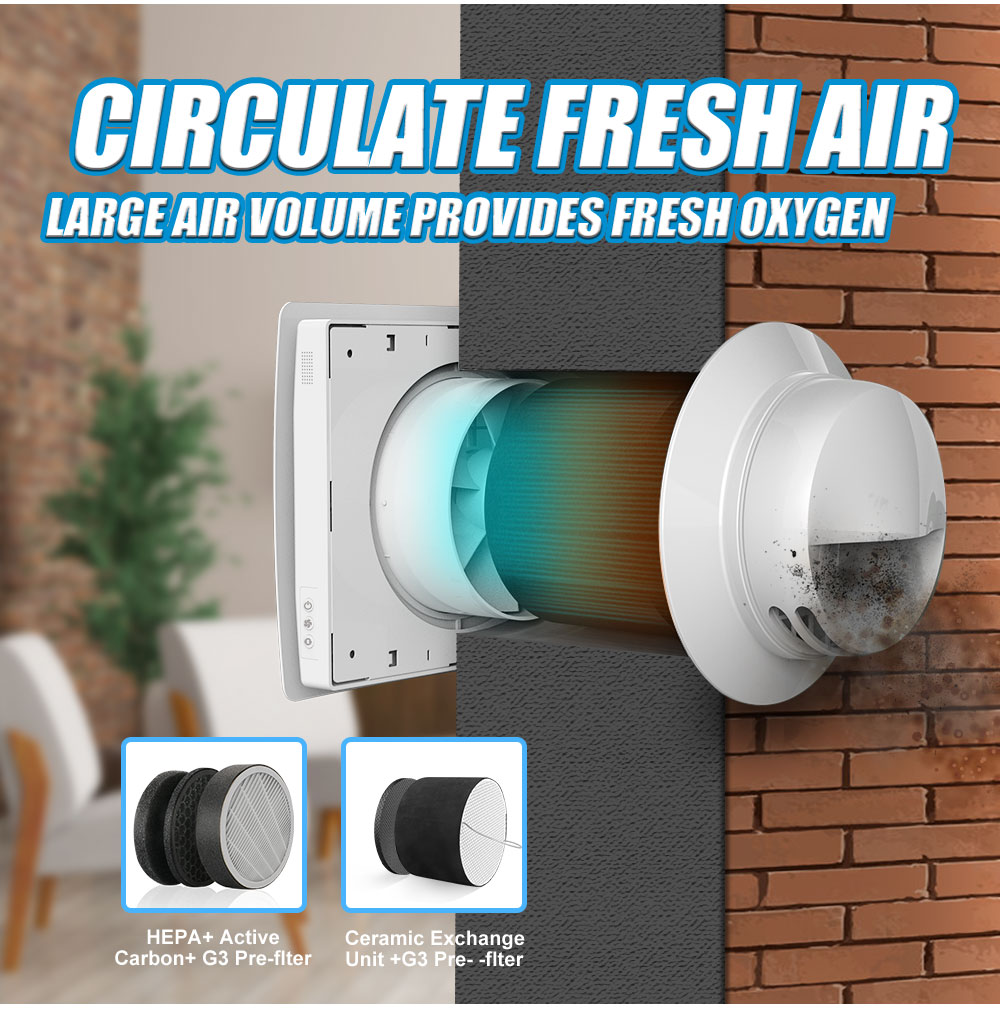

24-hour uninterrupted air supply and exhaust mechanism to dehumidify and remove odors and filter particulate matter to ensure fresh air. Equipped with HEPA filter and activated carbon filter element to ensure healthy air quality.

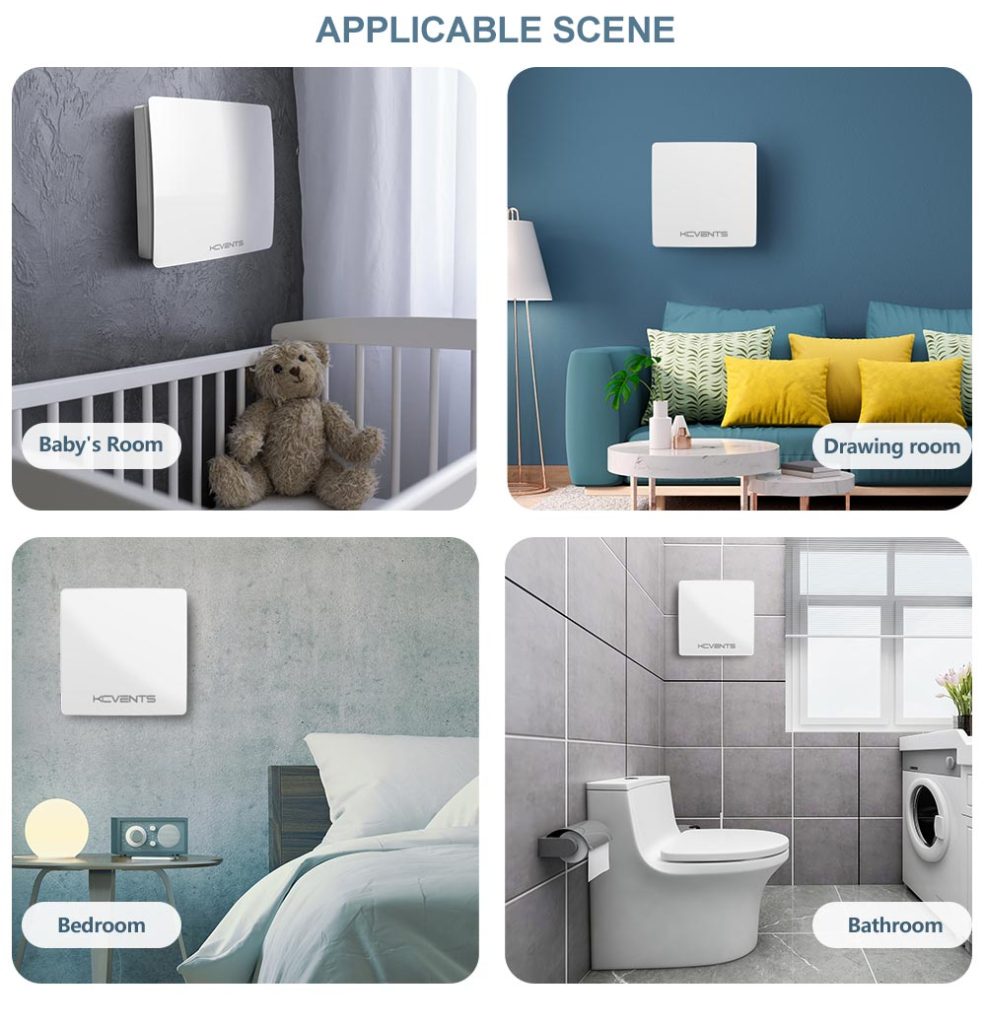

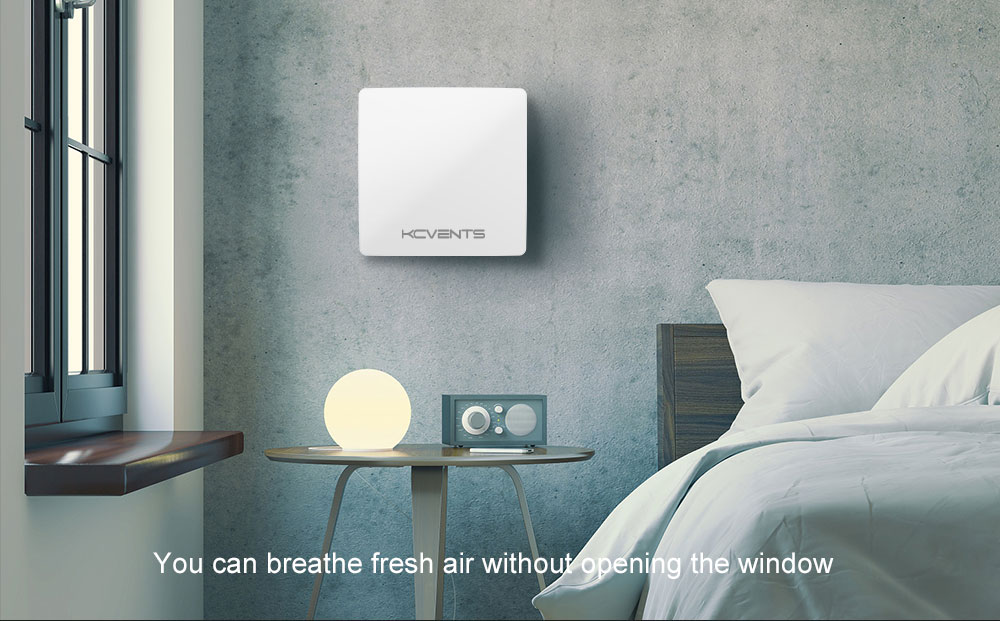

Featuring a silent design for undisturbed comfort, the VT501 operates at low noise levels even at high speeds during the night, making it ideal for use in bedrooms, offices, and other quiet environments.

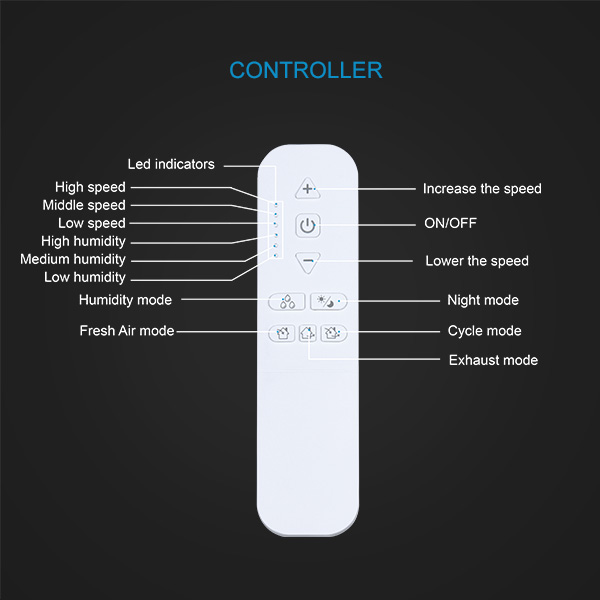

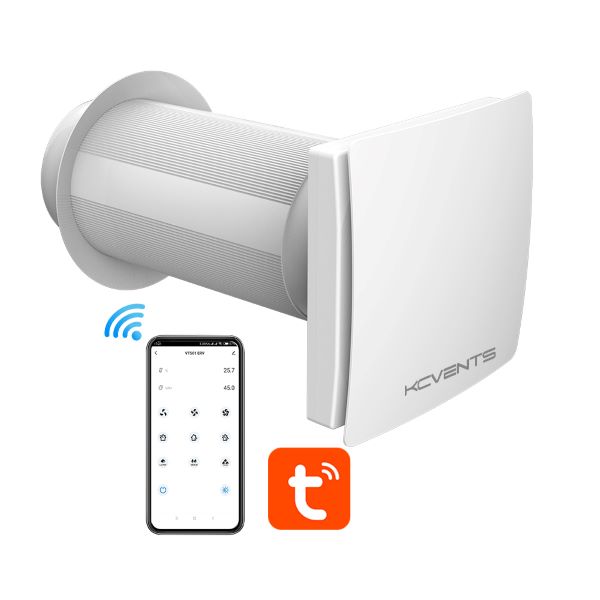

With smart control and remote monitoring, the VT501-WF supports WiFi connectivity, enabling device management via the Tuya App.

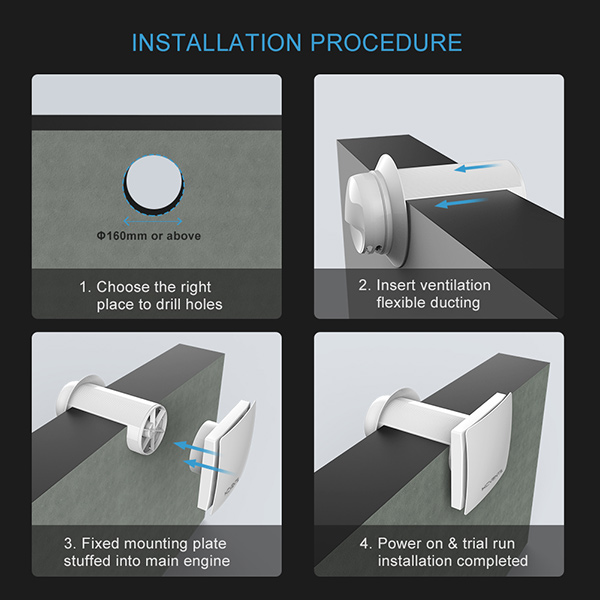

Made with high-quality materials, the VT501 features corrosion-resistant ceramic and durable ABS/plastic housing with waterproof properties. It is easy to install, with recommended filter replacement every season and ceramic core cleaning once a year—ensuring low maintenance costs.

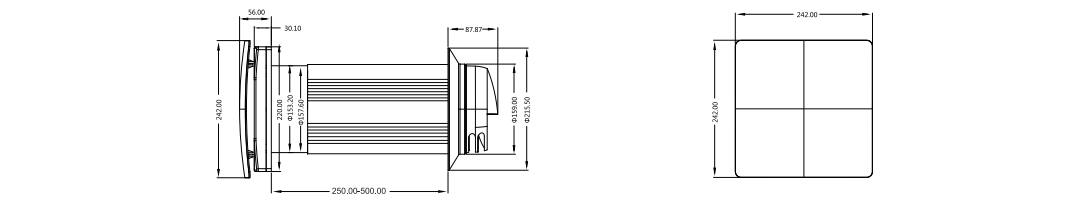

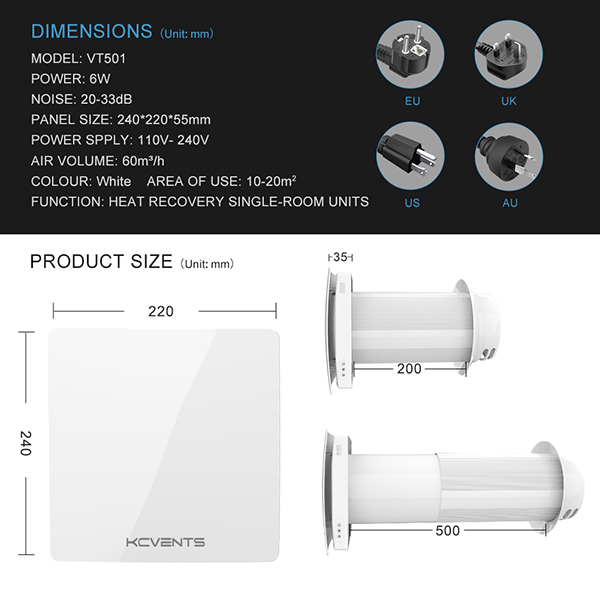

Diameter Unit	Exterior Tube	Diameter/Wall Thickness	Installation Tube (can be cut)	Inside Cover
160 mm	163 mm	standard :250 mm - 500 mm	250 mm to 500 mm	242 mm x 242 mm

Speed	Sleep	Ⅰ	Ⅱ	Ⅲ
Voltage	12VDC Or 100 - 240V 50 - 60Hz
Ventilator Total Power (W)	2.5	3	4.5	8.5
Ventilator Current(A)	0.025	0.03	0.045	0.07
Airflow (m³/h)	20	48	54	60
Speed (RPM)	630	1100	1600	2200
Transported Air Temperature	-20°C(-4°F) to +50°C(122°F)
Heat Exchange Efficiency	up to 90%

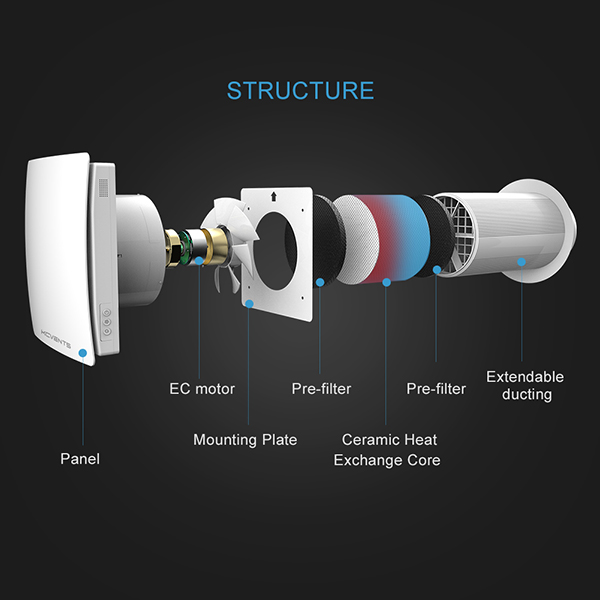

Heat Exchanger core	Ceramic

Arrangement of efficient energy-saving supply and exhaust single-room ventilation in flats, houses, cottages, social and commercial premises.
Reducing heat losses caused by ventilation due to heat recovery.
Humidity balance and regulated air exchange create individually controlled microclimate.
